mapbox-exif-layer

An Open-source Mapbox GL JS & MapLibre GL JS custom layers package

Wind particles, smooth weather rasters, and GeoTIFF visualization

GPU-accelerated particle motion for wind: mapping wind is that easy and cost-effective.

No tile server required. Works with Mapbox GL JS and MapLibre GL JS.

Demo videos

Two powerful wind particle animation layer classes at your disposal. Learn how they differ.

NewParticleMotion global wind and relative humidity on a MapLibre globe
v1.4.1

NewParticleMotion layer class for wind particles

Global wind and relative humidity with timestep controls. Particles stay inside the current map viewport.

Watch on Vimeo →

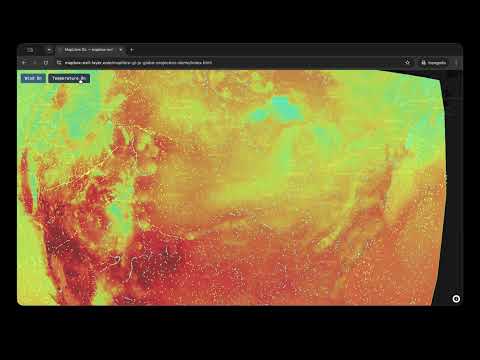

ParticleMotion continental US wind and temperature on a MapLibre globe
v1.3.1

ParticleMotion layer class for wind particles

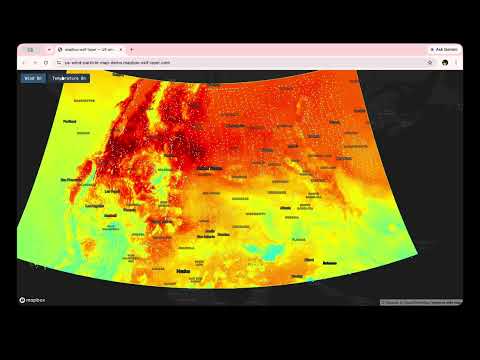

Continental US wind and temperature. Particles always distribute across the entire data extent.

Watch on YouTube →

Live demos

MapLibre · Global

Weather map time slider

NewParticleMotion on a MapLibre globe. NOAA GFS 0.25° global wind, temperature, and relative humidity, with timestep controls.

Open demo → MapLibre · CONUS

Country-scale forecast on a globe

NewParticleMotion on a MapLibre globe. Continental US wind and temperature. No-data cells are masked.

Open demo → Mapbox · Southern California

Overlay wind with other map layers on Mapbox (mercator)

ParticleMotion on Mapbox mercator. NOAA NAM NEST wind forecast clipped to Southern California only, overlaid with many other wildfire-related layers.

Open demo →

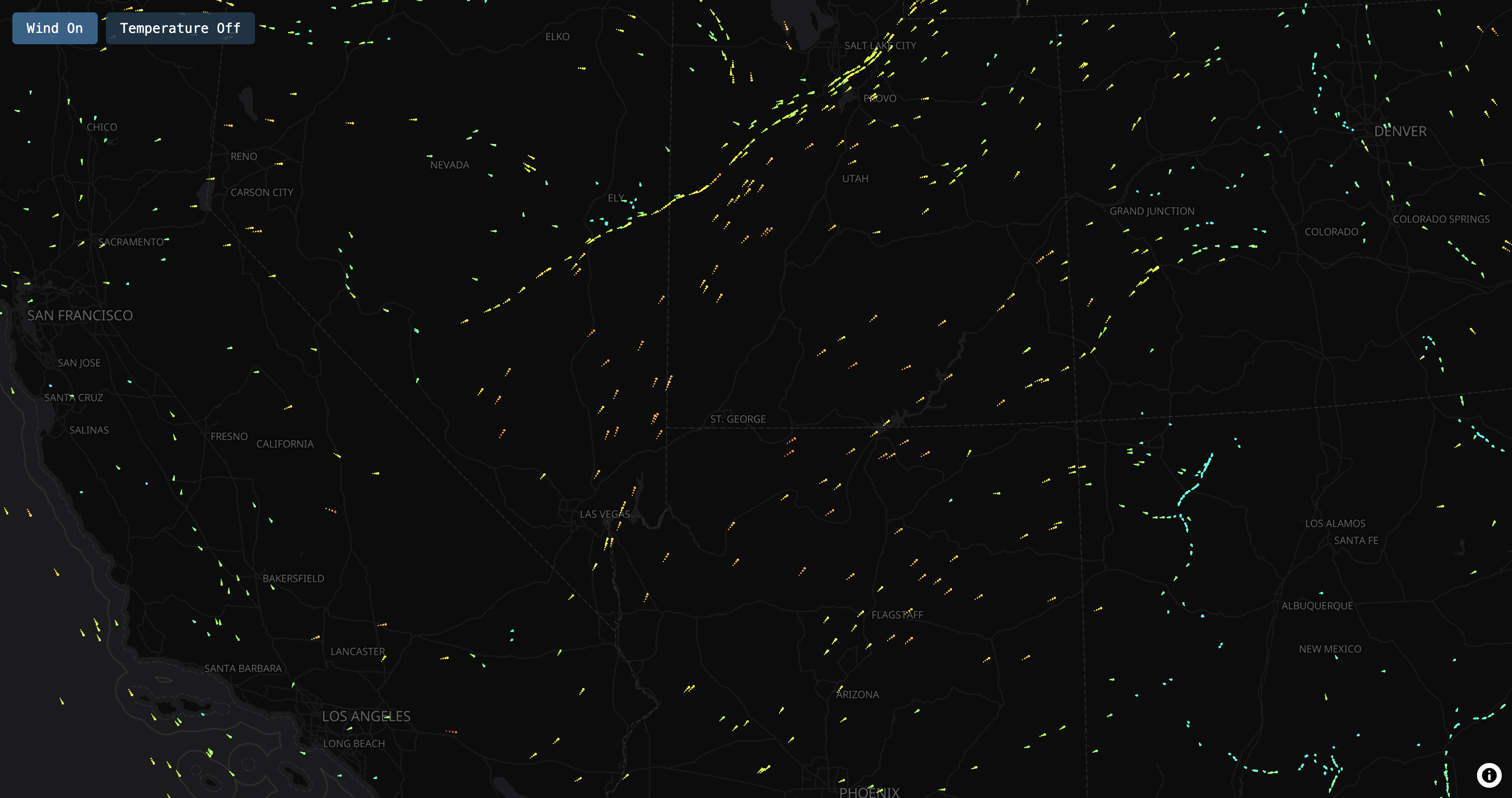

Four Use Cases

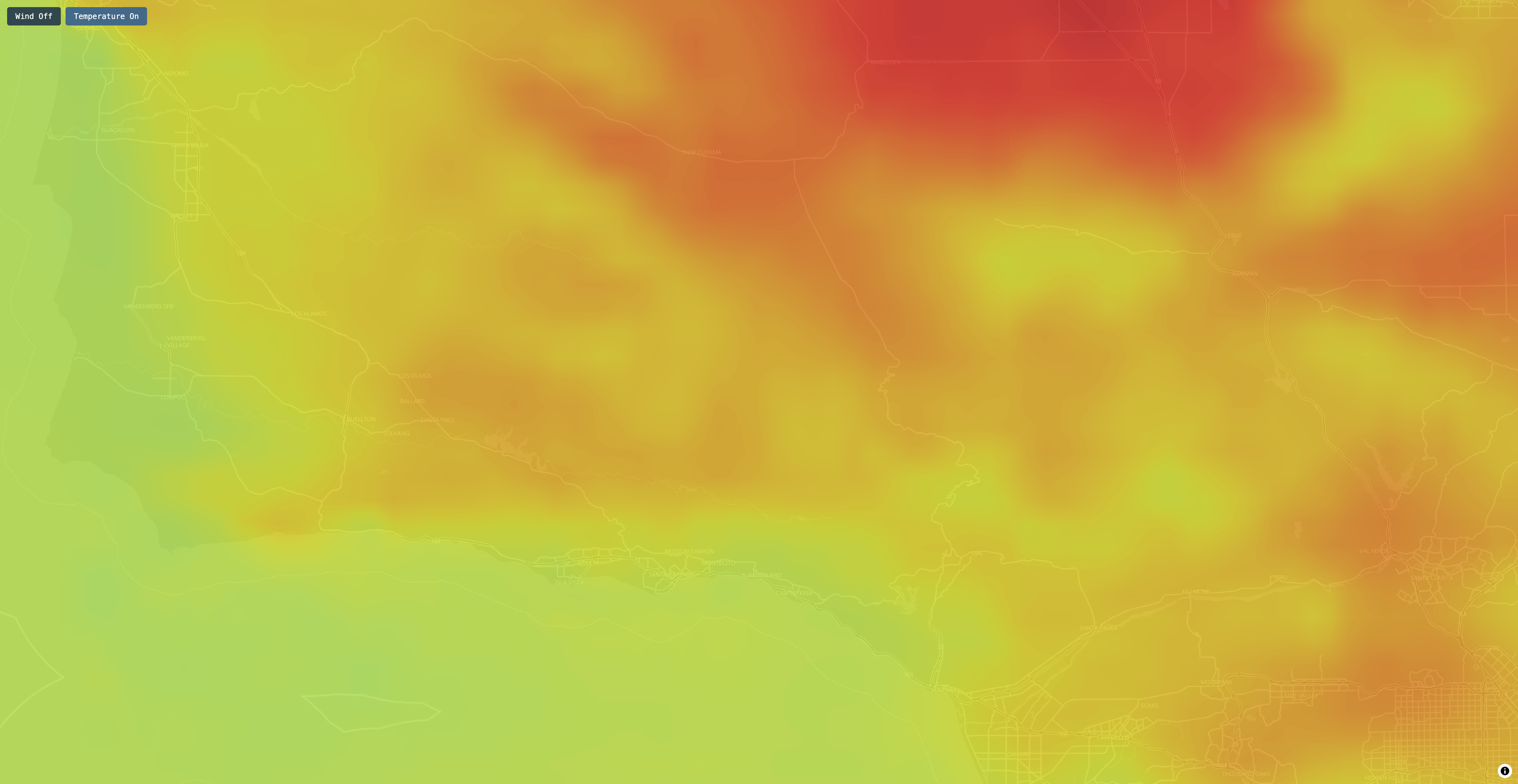

Smooth raster temperature layer example over a regional map

Smooth, non-blocky weather display

Smooth Raster

Utilizing WebGL RGBA texture with linear filtering; the GPU bilinearly interpolates between adjacent texel values when sampling, producing a smooth gradient. Suitable for scalar (grayscale) variables such as temperature and precipitation.

Quick Start

Mapbox MapLibre

Sources Supported

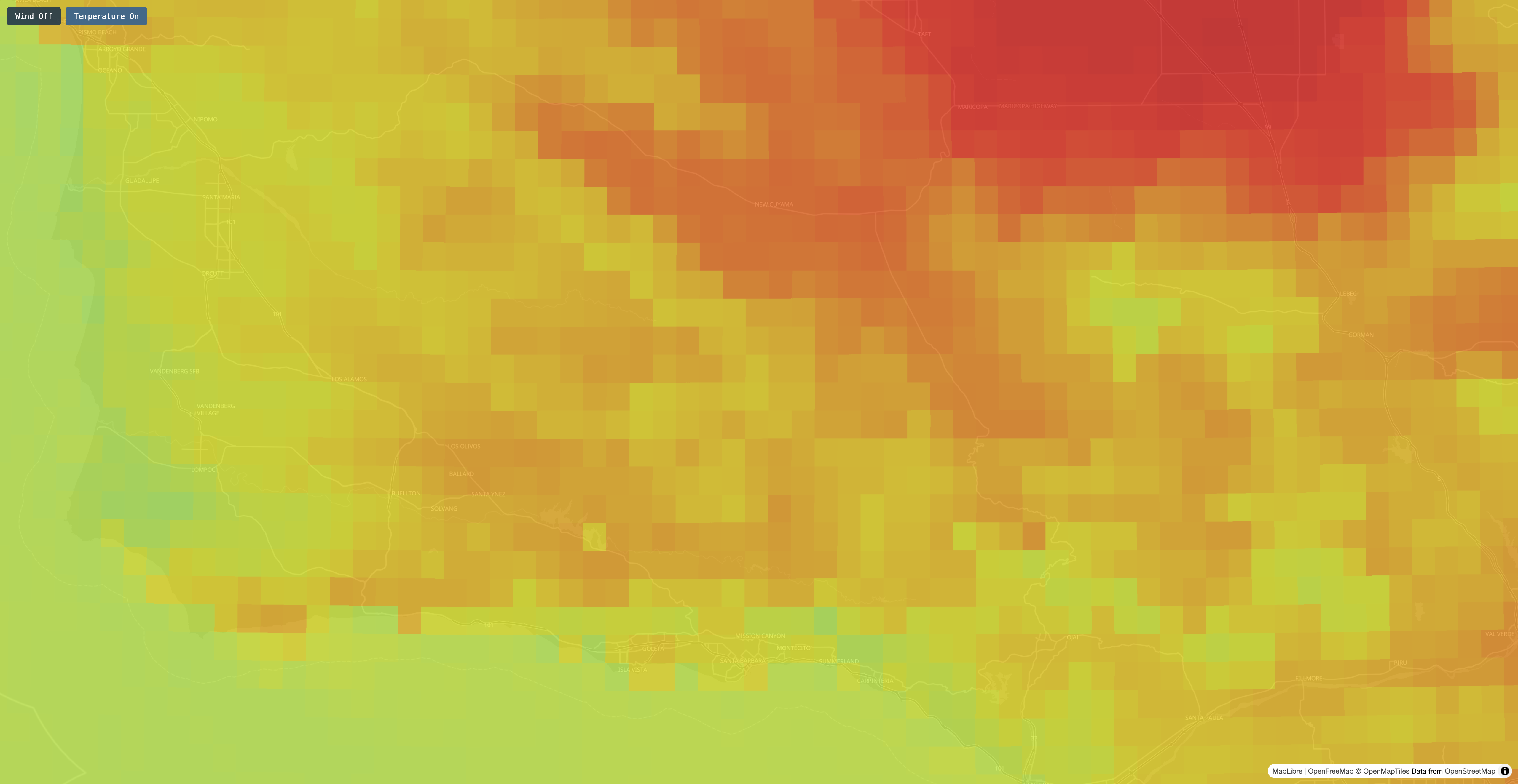

Grayscale scalar GeoTIFF with temperature visualized; grid native resolution is visible

Grayscale, Scalar GeoTIFF

Smooth Raster

Visualize a small single-band GeoTIFF directly in the browser. Multi-band GeoTIFFs (each band holding a different scalar variable) are also accepted; just pick one band to display. Grid size should be no more than 4096x4096. (v1.3.1+)

Quick Start

Mapbox MapLibre

Sources Supported

Scalar GeoTIFF

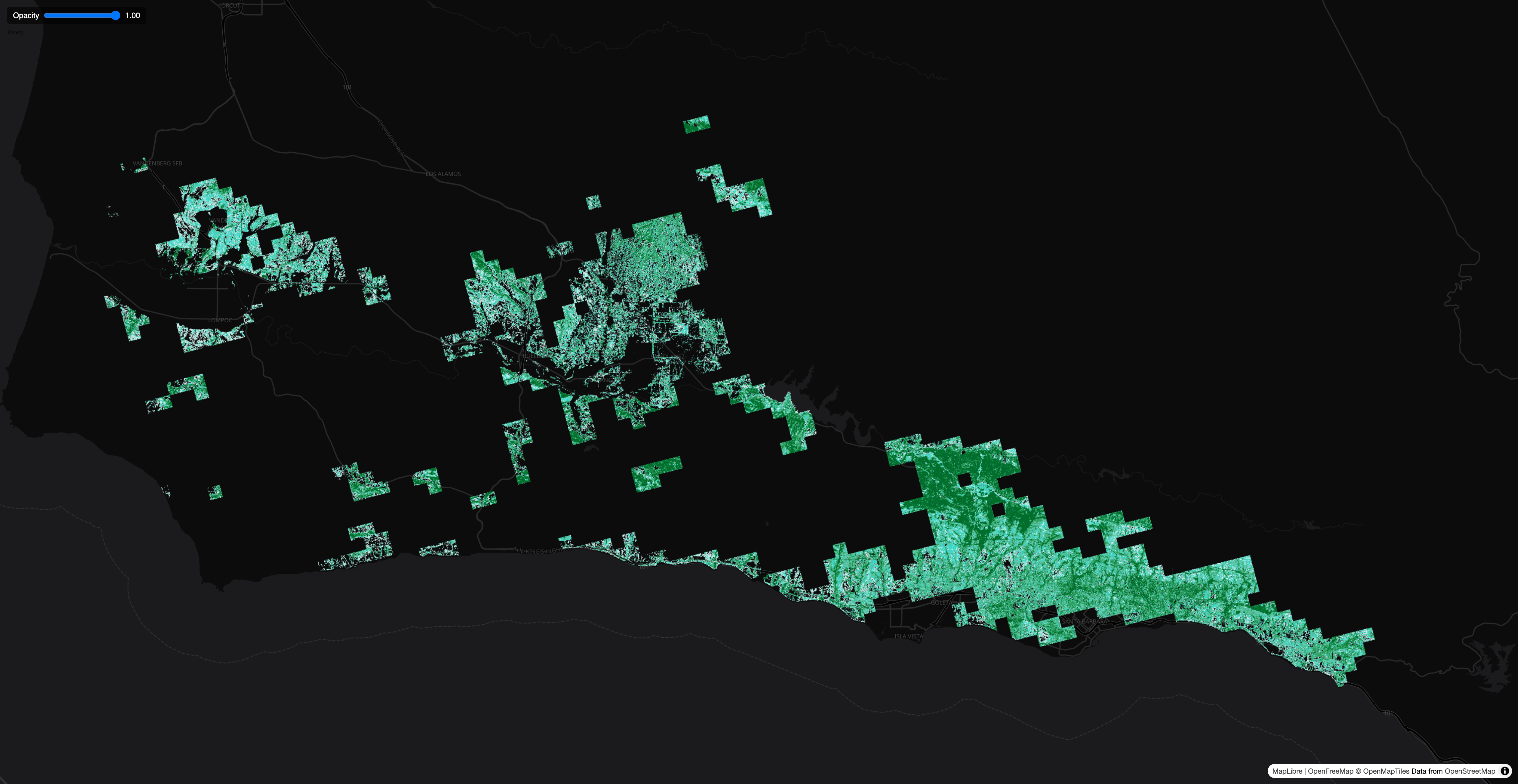

RGB GeoTIFF displayed as a true-color image layer on a map

RGB or RGBA GeoTIFF

RgbGeoTiff

Display a true-color (RGB) or transparent (RGBA) GeoTIFF as a native map image layer. The file is decoded client-side and added as a Mapbox/MapLibre image source. Supports uint8 and uint16 bands. (v1.3.3+)

Sources Supported

RGB GeoTIFF

Getting started

This package does not include a map SDK. Install one map runtime, then add mapbox-exif-layer (and optionally geotiff for .tif sources).

Mapbox GL JS

Default mapRuntime: 'mapbox'

npm install mapbox-gl

MapLibre GL JS

Remember to set mapRuntime: 'maplibre' on each layer

npm install maplibre-gl

This package

npm install mapbox-exif-layer

GeoTIFF sources optional

Only for .tif / .tiff URLs — JPEG-only setups do not need this.

npm install geotiff

Import

Import only the classes your map uses.

Wind — NewParticleMotion

v1.4.0+. Particles distribution constrained by both data extent and map viewport.

import { NewParticleMotion } from 'mapbox-exif-layer';

Wind — ParticleMotion

Particles distribute across the entire data extent.

import { ParticleMotion } from 'mapbox-exif-layer';

Smooth weather and scalar GeoTIFF — SmoothRaster

import { SmoothRaster } from 'mapbox-exif-layer';

RGB or RGBA GeoTIFF — RgbGeoTiff

import { RgbGeoTiff } from 'mapbox-exif-layer';

Add a wind layer

Replace YYYYMMDDHH with the current UTC hour: year, month, day, and hour (HH is 00–23). Set unit: 'mps' for these files: GFS wind is meters per second, and the default unit is miles per hour. On MapLibre, also set mapRuntime: 'maplibre'.

const windLayer = new NewParticleMotion({
  id: 'wind-particle',
  source: 'https://www.mapbox-exif-layer.com/gfs/0p25/wind/wind_YYYYMMDDHH.jpeg',
  color: [[0, [0, 195, 255]], [20, [249, 243, 1]], [42, [128, 0, 0]]],
  unit: 'mps',
  bounds: [-180, 90, 180, -90],
  readyForDisplay: true
});

map.on('style.load', () => map.addLayer(windLayer));

Frequently asked questions

How does it differ from other wind-mapping solutions?

Mapbox Wind Layer relies on Mapbox’s proprietary Tiling Service to convert GRIB wind data into raster arrays tiled at multiple zoom levels. At high zoom (e.g. greater than 12), covering the extent can require a very large number of tiles — processing cost grows quickly, and pipelines sometimes hang or get killed before they finish. If you cap tiles at zoom 12 instead, particles look like blurry boxes sliding across the map when users zoom in to village, neighborhood, or street level — an aesthetic that is hard to accept for detailed views.

Open-source alternatives

mapbox-exif-layer maplibre-gl-wind sakitam-gis/maplibre-wind
MapLibre v5 / v6 support Yes (with mapRuntime set to maplibre in constructor; v5 from v1.2.1+, v6 from v1.3.5) Yes (via MapboxOverlay of deck.gl) No (only works for MapLibre v3)
MapLibre Globe Projection Yes No No
Particle colors vary by actual speed Yes Yes No
Particle has tails Yes No Yes
GeoTIFF support Yes (sample code and data are provided; v1.3.1+) No Yes (mentioned in the doc, but no sample code or data supplied)
Image source support Single JPEG or PNG Single PNG Single or tiled JPEG or PNG
Browser on mobile device support Yes (native) Yes (depends on deck.gl) No (very likely to lose WebGL context)
NA/No data cells handling Store 0 in B-band for NA cells (v1.1.0+) Store 0 in A-band for NA cells Require GeoJSON mask valid or invalid area and supply mask parameter to the layer constructor

See more in Assessing packages for mapping wind as particle motion layer in MapLibre.

How are JPEG/PNG image sources encoded?

A JPEG or PNG used as a source is not a normal photo — it stores a normalized weather grid in three 8-bit RGB bands (0–255 per channel). For wind (ParticleMotion), u-velocity is min–max normalized to 0–255 in the R band and v-velocity in the G band; no-data cells use B = 0 (valid cells use B = 255). For a smooth raster (SmoothRaster), the scalar attribute is normalized to 0–255 in the R band; no-data cells use B = 255 (valid cells use B = 0).

The layer also needs the physical min and max values used when encoding (before normalization). You can supply them in either of two ways:

  • EXIF — write min/max to JPEG ImageDescription (the classic “EXIF-enabled JPEG” path; see Method 2 in the docs).
  • Constructor (v1.3.2+) — pass scalarValueRange on SmoothRaster or velocityRange on ParticleMotion when the image has no EXIF metadata (Method 1). If EXIF is present, it takes precedence.

See docs/jpeg-source.md for encoding rules, both min/max workflows, and ready-to-use pipeline scripts.

I would like to visualize a GeoTIFF file — can I use this package?

Yes. The package supports GeoTIFF in the browser with no tile server — which kind depends on your file:

  • Scalar / grayscale (temperature, elevation, wind u/v, …) — SmoothRaster or ParticleMotion. See scalar GeoTIFF docs.
  • RGB / RGBA imagery (aerial, orthomosaic, true-color satellite) — RgbGeoTiff. See RGB GeoTIFF docs.

That path is best for small grids, demos, data previews, and other non-production use. The layer downloads the entire GeoTIFF on load (no COG range requests or tiling), so large files or maps at many zoom levels are a poor fit.

For production, use a standard Mapbox/MapLibre raster tile source instead:

  • Pre-generated MBTiles — build tiles with rio-mbtiles or QGIS Raster → Generate XYZ Tiles (MBTiles), then serve with mbtileserver. For scalar GeoTIFF, assign RGB(A) colors from the attribute first (e.g. rasterio + NumPy) before generating the tileset.
  • COG + tile server — TiTiler (or GeoServer / similar) serves tiles directly from a Cloud Optimized GeoTIFF without pre-generating MBTiles.
  • MapLibre serverless COG — host a COG on static storage and use maplibre-cog-protocol for range-request tiling in the client (no tile server).

For wind maps, should I use JPEG/PNG or GeoTIFF?

Properly encoded JPEG/PNG rasters are much smaller than GeoTIFFs. On this site’s NOAA NAM NEST CONUS demo grid (2269×976), wind is ~332 KB as JPEG vs ~8.9 MB as ZSTD-compressed float32 GeoTIFF — a big difference for storage and download when you serve many forecast timesteps. GeoTIFF is still a practical starting point: a familiar gdalwarp step gets you a map without learning custom JPEG band encoding — a quick way to validate the layer and build confidence before moving to encoded images for production.

  • Prefer JPEG/PNG when you need many timesteps (multi-hour forecasts), a large grid, or want minimal hosting cost. Min/max velocity metadata can come from EXIF or constructor velocityRange.
  • Prefer GeoTIFF (EPSG:4326, float32 u/v bands, compressed) when you want a GIS-friendly pipeline without custom image encoding, have a smaller study area, and only a few timesteps. Extra float precision is often not visible in everyday visualization though.

Can GeoTIFF be used for smooth, non-blocky, linear-interpolated display?

No — not with SmoothRaster in this package. For smooth weather display (temperature, humidity, precipitation, …), use a properly encoded JPEG/PNG source. The grid is uploaded as an 8-bit RGBA texture with linear filtering, so the GPU bilinearly blends between neighboring cells and the layer looks smooth when zoomed in.

Scalar GeoTIFF on SmoothRaster is a separate use case: a preview path with native grid resolution and nearest sampling on float32 data (WebGL does not reliably support linear filtering on float textures). Cell edges stay visible when zoomed in even though colormap stops are interpolated. See scalar GeoTIFF docs and the GeoTIFF production note above for alternatives at scale.

Can this package be used with Leaflet or OpenLayers?

No. It targets Mapbox GL JS and MapLibre GL JS only — both WebGL map SDKs with a similar custom-layer API that this package implements. Leaflet and OpenLayers use a different rendering model and are not supported.

Do you provide ready-to-map wind data?

Yes. Global NOAA GFS 0.25° forecasts are published as EXIF JPEGs you can pass straight to ParticleMotion and SmoothRaster — no tile server. They are free for non-commercial and commercial use; add custom attribution for NOAA GFS and mapbox-exif-layer. The product updates every 6 hours (00 / 06 / 12 / 18 UTC cycles).

Layer URLs (copy one per source; HH is 00–23 UTC):

https://www.mapbox-exif-layer.com/gfs/0p25/wind/wind_{YYYYMMDDHH}.jpeg
  • 10 m UGRD + VGRD, m/s (ParticleMotion, unit: 'mps')
https://www.mapbox-exif-layer.com/gfs/0p25/temperature/temperature_{YYYYMMDDHH}.jpeg
  • 2 m TMP, °C (SmoothRaster)
https://www.mapbox-exif-layer.com/gfs/0p25/rh/rh_{YYYYMMDDHH}.jpeg
  • 2 m RH, % (SmoothRaster)

Catalog for a time slider (copy this URL; hourly f000–f120, then 3-hourly through f384):

https://www.mapbox-exif-layer.com/gfs/0p25/status.json

Build slider timestamps as hourly steps from init_unix through hourly_until_unix. available_from is only a lookback stamp (init minus 96 h), not an inventory. Old JPEGs are not deleted by the pipeline; an S3 lifecycle rule expires them about 6 days after last modification, so times before init are not guaranteed.

Globe time-slider demo: live · source. To run the same NOAA → JPEG conversion on your own schedule, see pipeline/gfs. Field-by-field status.json notes are in the README GFS section.
